CAT 953K 953D loader low price crawler loader

  • CAT 953K 953D loader low price crawler loader
  • CAT 953K 953D loader low price crawler loader

CAT 953K 953D loader low price crawler loader

    Payment Type: L/C,T/T
    Terms of Trade: FOB,CFR,CIF,FCA
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days
    Transportation: Ocean,Land
    Port: Yantai Harbor,Qingdao Harbor

Basic Info

Model No.: CAT 953k

Product Description

953K Track Loader 953k crawler loader

2018 CAT 973D 963D 953D 973K 963K 953K 973WH track loader cat track loader low price crawler loader from China

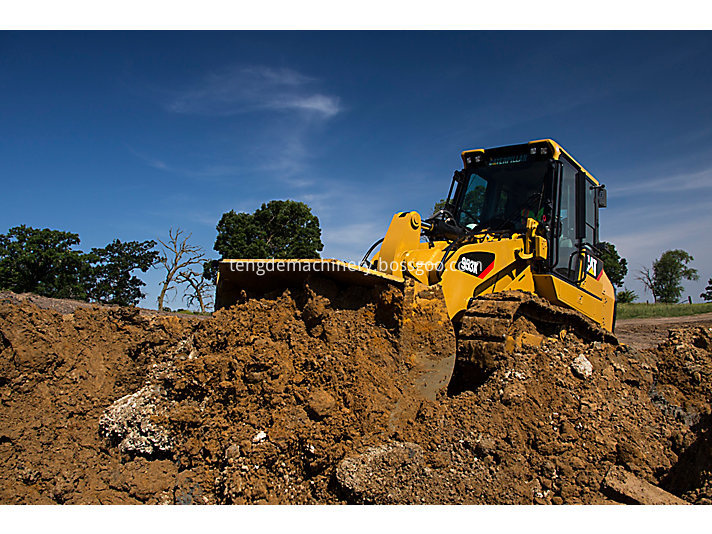

cat 953K crawler loader


EFFICIENCY

  • 953K uses 10-25 percent less fuel per hour than the previous model.*
  • Optional Performance Series bucket helps you move up to 10 percent more material per hour.
  • Efficient use of Diesel Exhaust Fluid(1) – typically 2.5-3 percent of fuel consumption – provides excellent overall fluid efficiency.

ENGINE

UNITS:
Flywheel Power 115.0 kW
Engine Model Cat C7.1 ACERT
Net Power (Rated) - SAE J1349/ISO 9249 115.0 kW
Net Power - Rated - ISO 9249 (DIN) 115.0 kW
Note (1) All nonroad Tier 4 Interim and Final, Stage IIIB and IV and Korea Tier 4 Final diesel engines are required to use only Ultra Low Sulfur Diesel (ULSD) with 15 ppm (mg/kg) of sulfur or less, or up to B20 biodiesel blended with ULSD. B20 should meet ASTM D7467 specification (biodiesel blend stock should meet Cat biodiesel spec, ASTM D6751 or EN 14214). Cat DEO-ULS™ or oils that meet the Cat ECF-3, API CJ-4, and ACEA E9 specification are required. Consult your OMM for further machine specific fuel recommendations.
Note (2) Diesel Exhaust Fluid (DEF) used in Cat Selective Catalytic Reduction (SCR) systems must meet the requirements outlined in the International Organization for Standardization (ISO) standard 22241.
Emissions U.S. EPA Tier 4 Final/EU Stage IV/Korea Tier 4 Final or China Nonroad Stage III, India Bharat III, Eurasian Economic Union Stage IIIA, UN ECE R96 Stage IIIA emission standards, equivalent to Tier 3/Stage IIIA

UNDERCARRIAGE

Track on Ground 2320.0 mm
Track Gauge 1836.0 mm
Ground Contact Area - Optional Shoe 1.8 m²
Ground Contact Area - Standard Shoe 2.2 m²
Ground Pressure(1) - Optional Shoe 76.7 kPa
Ground Pressure(1) - Standard Shoe 60.7 kPa
Grouser Height - Double Grouser 35.0 mm
Track Rollers/Shoes - Each Side Jun-37
Track Shoe Width - Optional 380.0 mm
Track Shoe Width - Standard 480.0 mm
Ground Pressure - Optional Shoe 75.3 kPa
Ground Pressure - Standard Shoe 59.6 kPa
Note (1) Machine equipped with Tier 4 Final/Stage IV emissions reduction technology.

SERVICE REFILL CAPACITIES

Fuel Tank 265.0 l
DEF Tank(1) 16.0 l
Note (1) Machine equipped with Tier 4 Final/Stage IV emissions reduction technology.

WEIGHTS

Operating Weight 15355.0 kg
Note (1) Machine equipped with Tier 4 Final/Stage IV emissions reduction technology.
Operating Weight(1) 15642.0 kg

BUCKETS

Capacity - General Purpose 1.8 m³
Capacity - Multi-Purpose 1.6 m³
Capacity - Performance Series 2.1 m³
Width - General Purpose 2485.0 mm
Note Buckets equipped with teeth and segments.
Width - Multi-Purpose 2471.0 mm
Width - Performance Series 2536.0 mm

AIR CONDITIONING SYSTEM

Air Conditioning The air conditioning system on this machine contains the fluorinated greenhouse Gas Refrigerant R134A (Global Warming Potential = 1430). The system contains 1.1 kg of refrigerant which has a CO2 equivalent of 1.573 metric tonnes.

DIMENSIONS

Bucket Height - Carry Position 548.0 mm
Carry Position Approach Angle 15°
Clearance at Full Lift Height and 45° Dump* 2694.0 mm
Digging Depth* 140.0 mm
Grading Angle 74°
Ground Clearance 417.0 mm
Height - Bucket Hinge Pin 3610.0 mm
Height - Top of Stack 2804.0 mm
Machine Height - Top of Cab 3155.0 mm
Maximum Rollback - Ground/Carry Position 43°/50°
Maximum Rollback/Dump - Fully Raised 52°/53°
Note *With general purpose bucket and extra duty teeth.
Overall Machine Height - Bucket Fully Raised 4666.0 mm
Overall Machine Length* 6389.0 mm
Overall Machine Width without Bucket: Narrow Tracks - 380 mm (14.9 in) Shoes 2216.0 mm
Overall Machine Width without Bucket: Standard Tracks - 480 mm (19.7 in) Shoes 2316.0 mm
Ramp Angle 29°
Reach at Full Lift Height and 45° Dump* 1195.0 mm
cat 953K crawler loader

HONG KONG KAIDE MACHINERY LIMITED

 HONG KONG KAIDE MACHINERY Limited is a sales agent and it is also a maintenance service company for Caterpillar /SEM machinery series. It was founded in 2003 as a state-owned enterprise in China. In 2009, Kaide Machinery was transformed into limited liability company after the reform of state-owned enterprises. Moreover, It is the biggest agent for SEM (Caterpillar (Qingzhou) Ltd. ) in China. At present, there are a large number of customers who need heavy load working with port, coal mining, building, hauling, cleaning and so on.
The company is based on the guiding principle of "customer-first, honesty, diligence and innovation, people-oriented, responsible and stable operation". And always stick to the "commitment to the user" business purposes. Kaide will continue to place [meeting customer needs" as the ultimate goal of our business. In this development process, our company is awarded as [the top ten outstanding agents", [outstanding service center" and ranks the top three at products sales amount for 15 years. Most of machinery and accessories are supplied by Caterpillar (Qingzhou) Ltd. (CQL), formerly Shandong SEM Machinery Co., Ltd. was founded in 1958 and reorganized as a shareholder company in 2003. In 2008, Caterpillar (Qingzhou ) Ltd. became a full acquisition of Caterpillar and today is an important Caterpillar brand supporting the fast growing China customer base.

At a wholly-owned subsidiary of Caterpillar, CQL will produce both SEM brand products including wheel loaders, soil compactors, motor graders, track type tractor, landfill compactors & Pavement Machinery components, work tools and [Cat 950 GC". SEM brand has become one of the machines brands of Caterpillar to support the increasing customers in China construction and engineering industry. To enhance the competitive position in China and other growing markets, Caterpillar has increased the investment and expansion at CQL facility since 2009. With the support of local government, Caterpillar Qingzhou has acquired the land near the facility to expand capacity of product lines and other key components. In Qingdao, Caterpillar has made huge investment to build the world-class research and development center which has attracted the world`s top researchers and CQL research and development team to continuously develop innovative products according to market demand to meet the requirements of different customers.

Leveraging the leading distribution model and complete service support system, CQL has a broad distribution network across the nation with multiple domestic dealers at all levels and more than 80 maintenance & service centers to provide the high added-value products and service and support the customers` development and success maximally. The well-established international distribution network reaches more than 30 countries, including Southeast Asia, Africa and Middle East, Russia and CIS countries, Latin and Central America.

As an integral part of Caterpillar`s market strategy in China, CQL has developed clear brand strategy, restructured the organization and integrated he dealer network.
As a large agent of CQL,we stay committed to heritage and development of advantage for CQL. Our aim is supplying the best products and offering the best service to our customers.
